Struggling with pulling, material breakage, or ergonomic risks when working with heavy spools? In modern manufacturing, feeding coiled materials like braided mesh into a production line can often become a bottleneck. Traditional passive unwinding methods rely on the line pulling the material, which leads to inconsistent tension, stretched products, and potential safety hazards.

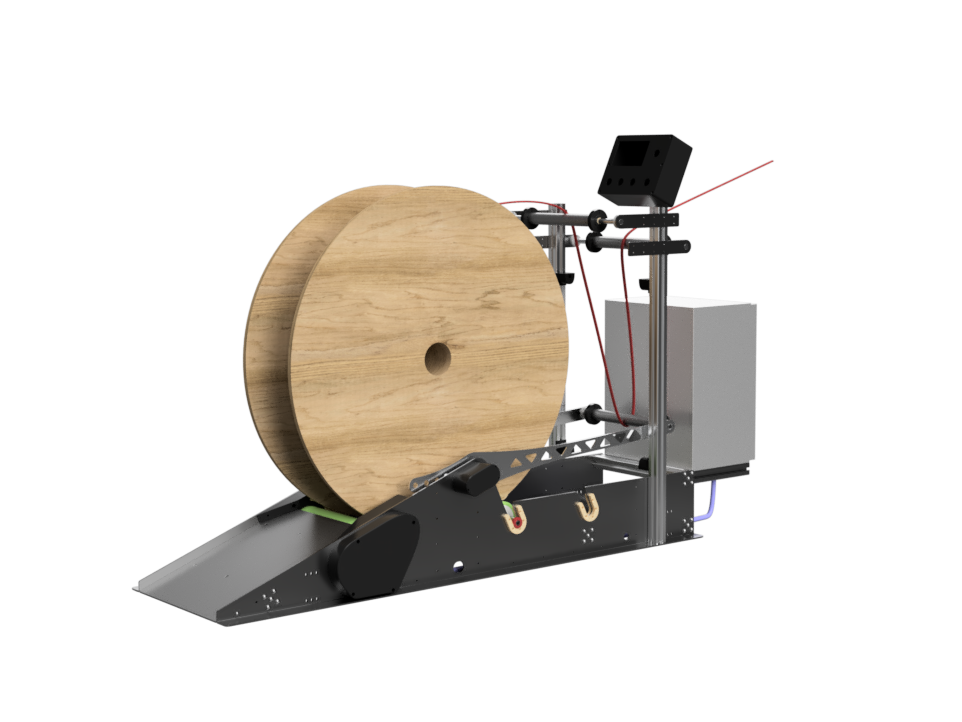

At TAIMU, we have engineered a better way. Meet our latest standalone solution: the Automatic Positive Unwinder DVP01.
What is a Positive Unwinder?
Unlike a standard passive spool holder, a positive unwinder (or motorized payoff) actively drives the spool to feed the material into the line. By doing so, it removes the physical strain from your main production machinery and ensures the material is delivered smoothly and consistently.
The DVP01 is designed to seamlessly integrate into any existing production line, guaranteeing a fluid, safe, and highly efficient workflow.
Key Features of the DVP01
1. Constant Tension & Zero Breakage

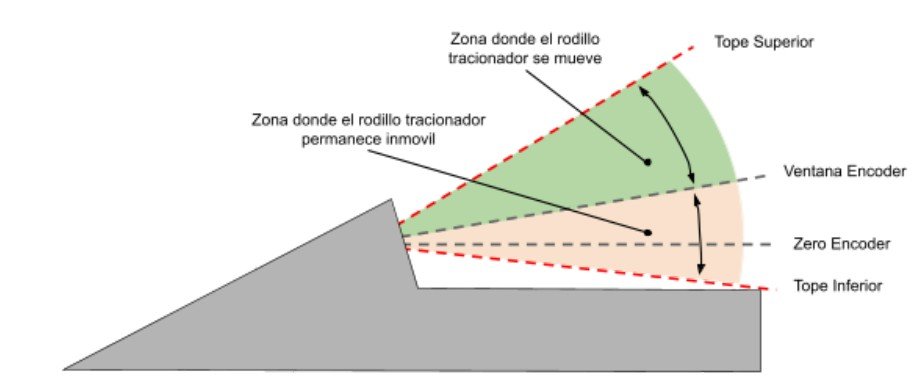

The heart of the DVP01 is its advanced tension control system. It utilizes a closed-loop pendulum mechanism connected to a high-precision servomotor. This allows the machine to unwind the material at the exact speed demanded by your production line. The result? Zero jerking, no material stretching or deformation, and a drastic reduction in breakage.
2. 100% Ergonomic Loading
Heavy lifting is a major cause of workplace injuries. We designed the DVP01 with the operator’s health in mind. Instead of requiring a crane or manual lifting to mount a heavy spool, the DVP01 features a built-in entry ramp. The operator simply rolls the spool up the ramp and locks it into place.
3. Laser Intelligence
Not all spools are created equal, and your machinery should be able to adapt. The DVP01 is equipped with smart laser sensors that automatically detect the size of the loaded spool (e.g., recognizing if the diameter is larger or smaller than 850 mm). Once detected, the system instantly auto-adjusts the motor’s speed parameters to maintain optimal feeding without requiring manual reprogramming.
4. Active Safety Systems
Safety is non-negotiable in Lean Manufacturing. The DVP01 operates with physical limit switches that provide two crucial automatic safety modes:
Standby Mode: If the spool runs empty, the machine detects the lack of tension and safely pauses.
Alarm Mode: If a dangerous knot or tangle is detected in the material, the system will instantly halt operation and trigger the visual status beacon to alert the operator, preventing damage to the line.
5. Standalone & Mobile
While the DVP01 integrates perfectly with your existing setup, it is a fully independent, standalone unit. Thanks to its heavy-duty casters and quick-release toggle clamps, it can be easily moved to different lines within your plant and anchored securely to the floor when it’s time to run.
Are you ready to automate your process? Our engineering team is ready to help you integrate the DVP01 into your specific workflow.
